DESCRIPTION

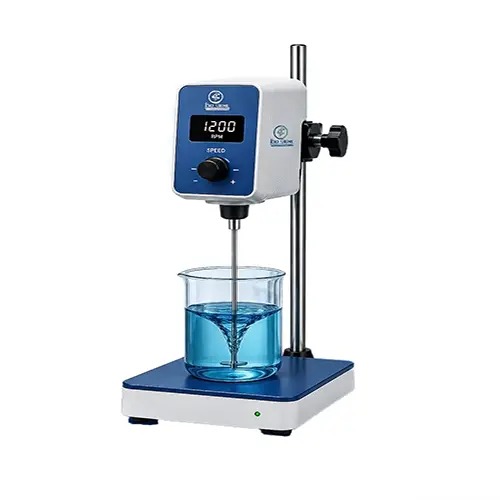

BTI –DLS-100 Digital overhead stirrer suitable for mixing high-viscosity liquid or solid-liquid in. Mainly used in the field of chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other.
- Applications
- Features
- Control
- Construction
- Specification
· LCD/LED real time display of speed actual value.
· Precise control of speed, control accuracy ± 3 Rpm.
· Constant speed, torque is automatically adjusted according to the sample viscosity changes, to maintain the set speed.
· Security protection including overload protection and motor protection, there have been automatically cut off the circuit when overload, short circuit and speed abnormal situation and the police, to ensure safe operation and laboratory safety.
· Anti-spilling, smooth start, prevent spilling.
· Closed shell liquid has been spilled into the machine to prevent internal corrosion circuit to ensure safe operation. Ultra-long continuous and stable operation.
|
TYPE |
BTI-DLS-20 |
BTI-DLS-40 |
BTI-DLS-60 |
BTI-DLS-100 |
|
MAXIMUM STIRRING QUANTITY (H20) [L] |
20 |
40 |
60 |
100 |
|
MOTOR INPUT POWER [W] |
60 |
120 |
180 |
220 |
|
MOTOR OUTPUT POWER [W[ |
50 |
100 |
150 |
200 |
|
VOLTAGE [VAC] |
240 |
240 |
230 |
230 |
|
FREQUENCY [HZ] |
60 |
50 |
50 |
50 |
|
POWER[W] |
70 |
130 |
150 |
200 |
|
SPEED RANGE [RPM] |
50 - 2000 |
50 - 2000 |
50 - 2000 |
50 - 2000 |
|
SPEED CONTROL ACCURACY [RPM] |
+/-5% |
+/-5% |
+/-5% |
+/-5% |
|
MAXIMUM TORQUE [N.CM] |
40 |
60 |
80 |
120 |
|
THE MAXIMUM VISCOSITY [M PAS] |
10000 |
10000 |
10000 |
10000 |
|
AMBIENT TEMPERATURE [áµ’c] |
20 - 40áµ’c |
20 - 40áµ’c |
20 - 40áµ’c |
20 - 40áµ’c |
|
RELATIVE HUMIDITY [%] |
10 -95RH |
10 -95RH |
10 -95RH |
10 -95RH |
