Bio Gene Orbital Incubator Shaker is a perfect machine used in Protein Expression studies at plasmid 4ºC specific cell generation or thermophiles growth at 80ºC Bacteria multiplication in tubes or yeast cultures in flask. Sturdy compact noiseless features of Bio Gene Orbital Incubator shaker has made popular choice of users world wide.
- Applications
- Features
- Control
- Construction
- Specification
Bio Gene® Orbital Incubator shaker are widely used in
- Microbiology, zoology, food, cosmetics or Pharma industry
- Hospitals and Medical Facilities
- Pharma Industries Manufacturing
- Engineering Industries
- Research Centers
- Universities
- Versatile usage
- Ergonomic Design
- Energy Efficient
- CFC free cooling*
- Long life
- Low Maintenance
- Calibration And Protocol
- Documentation
- Shaking Speed:
The shaking speed of our standard model variable speed incubator shaker is between
50 RPM to 400 RPM.
SPECIAL FEATURES
MACHINE STOPS
- Door open
- Programmed End
- Shaker Time program end
- Both
Alarms
- Programe End
- Heating Cycle
- Cooling Cycle
- Shaking Cycle
- Microprocessor Programmable controls, 21 CFR Part II Complaint.
- Temperature: RT +5ºC to 60ºC.
- Time: 0-99/999 Min
- Alarm: Temperature Timer
- Process: Start. End
- EN: 60601 : 1
- EMD: 93/42/EEC
- EN 61000-6-1: 2001
- EN 61000-6-3: 2001
- Electromagnetic Compatibility Directive (89)/336/EEC)
- Microprocessor based Refrigerated Incubator Shaker Controller with Auto tune PID temperature control.
- 128 x 64 BLUE Graphical display
- 5 soft touch keys to control the different parameters.
- 9 programmable profile control programs for automatic operation.
- Real Time Clock
- Door open detection

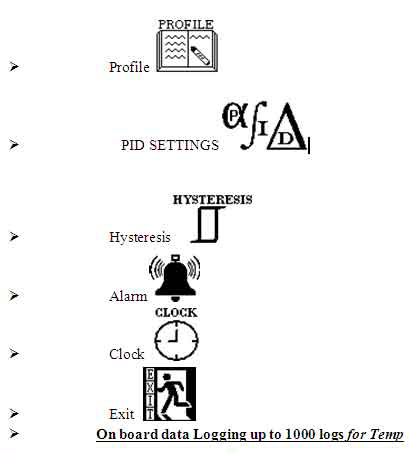

- Menu settings contain:
RPM Programming
- The unit has double wall construction with inner working chamber made of 304 grade stainless steel sheet.
- Microprocessor controlled incubator shaker with precise setting of agitation speed, running time & temperature.
- Bio gene refrigeration through a hermetically sealed compressor uses CFC free refrigerant.
- Interchangeable platforms, flask clamps & test tube racks.
- Offered with a platform for flasks and tubes.
- Large, clearly visible LCD character display presents a menu of function/status readouts including speed, running time, self-diagnostic Indicators & temperature.
- Bio Gene Advance Technology Refrigerated Incubator Shaker driven by unicentric heavy duty counter balanced drive with DC brushless motors and permanently lubricated ball bearings double sealed ZZ quality.
- Bio Gene Refrigerated Incubator Shaker Stainless steel chamber, semicircular arcs at corners for cleaning easily and the space between the shelves in the chamber is adjustable.
- DOOR :- Double walled construction with PUF insulation & large glass observation window permits easy viewing & monitoring.
Air Circulation:
- Vacuum impregnated stator winding with Dr. Back varnish under red baktol
CASTOR WHEEL The unit is mounted on castor wheel for easy mobility with Locks.
Heating:
- Inner Chamber Dimension: Wide range 2000,5000 ml
- Capacity to accommodate: 50 ml, 100 ml, 250 ml, 500 ml, 1000 ml, 2000 ml, 5000 ml Flasks
- Motor: D.C. motor with accurate speed control and low noise level
- Platform Size: 300 mm x 300 mm, 450mm x 450 mm, 500mm x 500 mm, 600mm x 600 mm
ILLUMINATION
Our units are provided with door operated illumination system comprising of fluorescent lights. (standard).
SPEED CONTROL:
The Bio Gene Refrigerated Incubator shaking in our Refrigerated Incubator Shakers is controlled by a drive which in turn is controlled through micro processor based digital speed controller cum RPM indicator with great accuracy.
FRONT PANEL:
Front panel of our units comprises of on/off switches heating, cooling and mains indicator lamps, temperature controllers and voltmeters.
Digital Display Temperature Controller
Model | BTI OIS/350350 |
BTI OIS/450450 |
BTI OIS/500500 |
BTI OIS/600600 |
Temperature Range | RT +5°C to 60°C | |||
Temperature accuracy | +-1°C in Controller + 0.5°C | |||
Tray | 2 No | |||
Inner Chamber | Stainless Steel grade (304) | |||
Outer Chamber | CRCA Steel with Powder Coated | |||
Shaker Speed | 50 – 300 RPM | |||
Optional | Double Color Gate Top & Panel on request | |||
Orbital Motion | Eccentric Three pin 32mm | |||
Motor | PWM Motor | |||
Digital Setting | 0.1°C | |||
Digital Resolution | 0.1°C | |||
Stability | 0.1°C | |||
Safety Function | Temp. Overshoot High & Low Temp. Alarm | |||
Interior | Polish S.S. 304 grade Sheet | |||
Insulation | PUF | |||
Front Door | Double wall Stainless Steel with Glass Windows for is easy for observation | |||
Duty Cycle: Flask Universal holding with either all combination or individual capacity Flasks as mentioned in. |
Forced convection Continuous 250 ml 500 ml 1000 ml 2000 ml, Flask test tube racks |
|||
Platform | UNIVERSAL | |||
Noise | The Incubator shaker produce the noise Much Less than permissible limits of research laboratories >58DBA | |||
Ambient Operating Conditions | 10ºC to 48ºC | |||
Cooling Mechanism | Evaporating Temp Range | 0-60°C | ||
Refrigerant | R- 134a | |||
Refrigerant Control | CAPILLARY | |||
Compressor Cooling | STATIC | |||
General Applications | REFRIGERATOR/ DEEP FREEZER | |||
RATED PERFORMANCE | ||||
Cooling Capacity -Rated | 282 – 650 Btu/hr (Model specific) | |||
Power input -Rated | 80-110 Watts (Model Specific) | |||
Energy Efficiency Ratio | 3.53 Btu/Whr | |||
Current - Rated | 0.70 Amps | |||
LRA -Rated | N/A | |||
Evaporating Temperature | -23.3°C | |||
Condensing Temperature | 54°C | |||
Liquid Sub Cooling Temp | 32°C | |||
Return Gas Temperature | 32°C | |||
Ambient Temperature | 32°C | |||
Pressure - Suction | 0.32 Kg/Cm2 | |||
Pressure - Discharge | 12.9 Kg/Cm2 | |||
MECHANICAL MATRIX Of Compressor | MECHANICAL DATA | |||
Design Displacement/Revolution |
RECIPROCATING 3.14 CC |
|||
No. of Cylinders | One | |||
Speed (Nominal) | N/A | |||
Oil Charge | 230 CC | |||
Weight | 7.3 Kgs | |||
Internal Pressure Relief Valve | PROVIDED | |||
MOTOR DATA | ||||
Motor Type | PTCSIR | |||
Frequency | 50 Hz | |||
Phase | SINGLE | |||
Voltage -Rated | 230 Volts | |||
Voltage -Range | N/A | |||
High Potential Test | N/A | |||
OVER LOAD PROTECTOR | ||||
Type | EXTERNAL |

Bio Gene Refrigerated Orbital Incubator Shaker comes in operation when the demand to experiment the manipulation of micro organism speed up the production, cultivate and regulate the human friendly micro organism is in demand in medical, food or generation of complex proteins is sought. The precise temperature controls with flexibility introduce gases; LUX for small or large assay is demanded. Growth of media culture or enzyme cell tissue production. Bio Gene menu driven operator friendly software programs enhances the capability to get desired results.
- Applications
- Features
- Control
- Construction
- Specification
Bio-Gene Refrigerated ORBITAL INCUBATOR SHAKER is widely used in Research Centers, Major Universities, Pharma, Biotech, Medical research, Hospital, Diagnostics, Agriculture Science, Pharmacology, Immunology, Genetics, Bioengineering Biotechnology, Microbiology, Botany, and Zoology etc.
- Microprocessor Based Programmable controls
- Temperature: 0ËšC to 80ËšC.
- Time :- 0-99/999 Min
- Door Lock :- lockable
- Blower speed : ON/OFF
- Alarm : Temperature Timer
- Illumination : ON/OFF
- Sterilization : Cycle
- Process: Start. End
- Castor :- Lockable
- Air : Class 100
- EN: 60601 : 1
- EMD : 93/42/EEC
Microprocessor based Incubator shaker Controller
-
Microprocessor controller with 4” LCD display for display of shaking speed & temperature.2 Temperature Range & Accuracy: 5℃ above ambient to 60 ℃, ± 0.5 ℃3 Time adjustment in hours: 0-99 Min4Electromagnetic Compatibility Directive (89)/336/EEC)
- Microprocessor based Refrigerated Incubator Shaker Controller with Auto tune PID temperature control
-
§ Battery backup for Temperature Controller§ Auto tuning of controller§ Self-diagnosis for errors§ 4” LCD display for display of shaking speed & temperature§ 5 soft touch keys to control the different parameters.§ 9 programs memory.§ Real Time Clock§ Door open detection§ Attractive door profile§ Auto door closer§ Smart handle with LED door closure indication§ Menu settings contain:§ RPM Programming§ Heating by long SS tubular heaters§ Additional tray to store samples§ Chamber calibration port on side§ Electrical circuit breaker
- The unit has double wall construction with inner working chamber made of 304 grade stainless steel sheet.
- Microprocessor controlled orbital shaker with precise setting of agitation speed, running time & temperature.
- Timer 1 minute to 99 hours 59 minute of 1.0 minute increment
- Display: Digital LCD/LED screen. Large, clearly visible LED/LCD character display presents a menu of function/status readouts including speed, running time, self-diagnostic
- Indicators & temperature.
- Displayed parameters user and a single knob to select all operating conditions easily and quickly.
- Bio Gene Advance Technology Incubator Shaker driven by unicentric heavy duty counter balanced drive with DC brushless motors and 9 permanently lubricated ball bearings double sealed ZZ quality.
- Triple eccentric counter balance drive.
- The gap between inner and outer walls is filled with PUF insulation to Minimize temperature losses. With environment friendly unit, ideal for all general laboratory incubation which required temperature range 0°C to 80°C system set point ≤ 4°C
- DOOR :- Double walled construction with PUF insulation & large glass observation window permits easy viewing & monitoring.
- Temperature uniformity more than ±0.25°C at 37°C.
- Acceleration/Deceleration Circuit and fitted with Audible & Visible alarms.
- Interchangeable platforms, flask clamps & test tube racks.
- PUF insulation to Minimize temperature losses. With environment friendly unit, ideal for all general laboratory incubation which required temperature range 0°C to 80°C.
- DOOR :- Double walled construction with PUF insulation & large glass observation window permits easy viewing & monitoring. Inner Single door with full acrylic/glass, door operation manual.
- SILENT FAN MOTOR EBM PLAST Air flow vial silent fan motor
- CASTOR WHEEL The unit is mounted on castor wheel for easy mobility with Locks.
- Auto power cutoff at higher or low temperature.
- Auto-start on resumption of power failure.
- Sensor: Sensors that limit speed when shaker is unbalanced, stops shaker when Shaker is unbalanced, stops shaker when excess Vibration is detected system that limits damage to cells and the wetting of flask closures.
- Heating:
- Indirect heating system is provided in our units, comprising of Stainless steel sheathed air heaters of suitable wattage.
- Input Voltage: 230V, 50/60Hz. A.C. Supply
- Motor: D.C. motor with accurate speed control and low noise level
- Platform: Stainless Steel 304 grade with Lotus clamps with holding Devices.
Model - BTI | RIS/3535 | RIS/4646 | RIS/5050 | RIS/6060 |
Temperature Range | 0ºC to 80ºC SP < 4ºC | |||
Temperature accuracy | 0.1°C at 37°C | |||
Tray | 2 No | |||
Inner Chamber | Stainless Steel grade (304) | |||
Outer Chamber | CRCA Steel with Powder Coated | |||
Shaker Speed | 20 –250/ 350/500 RPM ±1rpm | |||
Optional | Double Color Gate Top & Panel on request | |||
Orbital Motion | Triple Eccentric Three pin 32mm/25.4mm | |||
Motor | DC Motor Brush less | |||
Digital Setting | 0.1°C | |||
Digital Resolution | 0.1°C | |||
Stability | 0.1°C | |||
Uniformity | ±1°C | |||
Safety Function | Temp. Overshoot High & Low Temp. Alarm | |||
Interior | Polish S.S. 304 grade Sheet | |||
Insulation | PUF | |||
Front Door | Double wall S.S. with Glass Windows for is easy for observation. When the glass door opens, air Circulation and heating system will automatically stop, which ensures no disadvantage of Convection. Forced convection, | |||
Duty Cycle | Continuous | |||
Flask Universal holding with either all combination or individual capacity Flasks as mentioned in. |
10 ml x 4 clamp |
|||
Platform Size | 350 x 350mm | 460 x 460mm | 500 x 500mm | 600 x 600mm |
External Dimensions | 500-750 x 600-980 x 850-1480 mm ± 5mm | |||
Noise | Noise Level:<65db | |||
Power Supply | 230 V 50/60Hz Single Phase AC Operation |
