When Nano Scale particles and Molecules of different masses are to be separated from immiscible liquids. Bio Gene Centrifuge are the solution. Bio Gene centrifuges produce Acceleration and Centripetal high gravitational force to bring in the Bind Wash Elute results very precisely.
- Applications
- Features
- Control
- Construction
- Specification
Bio Gene High Speed centrifuge are used in application of Petroleum Products, Hematology, Microbiology Chemical Engineer Nano Physics etc. at Industries, Research Centers University.
- Bio Gene Centrifuge Imported variable frequency drive High Torque, automatic control system, reliable operation.
- Tecumshe’s compressor
- High Precision Temperature controls
- Multiple Protections
- Overheat
- Speed
- Electronic locking and imbalance.
- TFT
- True color LCD Microprocessor Based widescreen touch screen.
- 16 Programs control Parameters of the Reselection of Rotors between programs.
- Flexibility to change programs, 10 levels of speed up speed down (0-10 levels) time for the user to choose freely.
- Direct Drive
- Brushless DC Motor
- TFT Touch screen
- Electronic Lock
- Vibration Absorption
- Self balance function
- PWM Controller speed control system
- High control accuracy
- Fast Acceleration and Deceleration Function
- 20 set of parameter
- Rotor Identification & Number Display
- Deceleration steps 10
- Acceleration steps 10
Bio Gene Centrifuges are manufactured after a careful Expertise of 20 Years taking the utility of max use by the customer.
CENTRIFUGE BOWL : The Centrifuge Bowl is made of thick Stainless Steel with joint less construction of Deep drawn Technology.
AUTOMATIC BALANCED MOTOR Bio Gene Centrifuge has a unique feature of imbalance detection thereby the Intelligence of microprocessor positions the motor for the Uneven imbalance safety.
LID :Bio Gene Research Team has carefully designed the lid with a paramount feature of Users Safety by providing the Lid with 300% extra Impact load test.
The lid is aerosol Tight to ensure the same.
DIGITAL SPEED INDICATOR :Bio Gene designs enables to have the Operator friendly Feature of Microprocessor based Digital Speed Indication with Pre Set Values programmable.
Digital Relative Centrifugal Force Indicator :
Our Centrifuge is capable to have the RCF displayed on the operation of the desired Speed automatically.

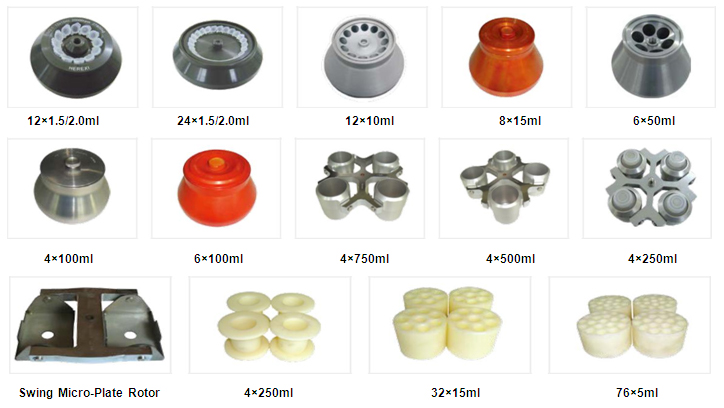

ROTORS : Bio Gene Micro Centrifuge is designed to undertake different rotor capacities from 1.5 ml to 7.50 ml .at Angle Head Centrifugation of desired samples.
| Model BTI | RC-25M-FL-HV | RC-21M-FL-HV | RC-20M-FL-HV | |
| Max Capacity | 4 x 1000ml | 6 x 500 | 6 x 500 | |
| Maximum speed | 25000 | 21000 | 20000 | |
| Maximum RCF(xg) | 64983 | 48330 | 43840 | |
| Standard rotor | 24×1.5/2.0ml | |||
| Speed Accuracy | ±30r/min | ±50r/min | ||
| Refrigeration system | Import fluoride-free compressor and control valve（R404a） | |||
| Temperature | -20℃~+40℃ | |||
| Temp. Accuracy | ±1℃ | |||
| Number of Programme modes | 16 | |||
| Timer range | 0-99h 59min | |||
| Control and driven system | Frequency motor, micro control, direct driver | |||
| Noise | ≤68dB | |||
| Rotor Identification | Automatic | |||
| Power | 220 V Ac 50Hz | |||
| Dimension(LxWxH) | 840 x 730 x 960 mm | |||
| Total Power | 6.0 kw | 5.0 kw | 4.0 kw | |
| Model | Capacity | Speed（r/min） | RCF(×g) |
| BTI-RC-25M-FL-HV Angle rotor |
|||
| 24×1.5/2.0ml | 25000 | 64983 | |
| 18×10ml | 23000 | 60460 | |
| 8×50ml | 21000 | 52356 | |
| 4×250ml | 15000 | 33800 | |
| 6×250ml | 14000 | 30070 | |
| 6×500ml | 10000 | 17700 | |
| 4×1000ml | 8000 | 12040 | |
| BTI-RC-21M-FL-HV Angle rotor |
|||
| 16x 10ml | 21000 | 48330 | |
| 6×50ml | 18000 | 37580 | |
| 8×50ml | 16000 | 29365 | |
| 6×70ml | 15000 | 25700 | |
| 8×100ml | 12000 | 19830 | |
| 6×300ml | 10000 | 18550 | |
| 6×500ml | 8000 | 11800 | |
| BTI-RC-20M-FL-HV Angle rotor |
|||
| 6×250ml beekman bottle | 10000 | 17700 | |
| 1000ml continuous flow | 8000 | 12040 |
OPTIONAL FITTINGS
